How the system works

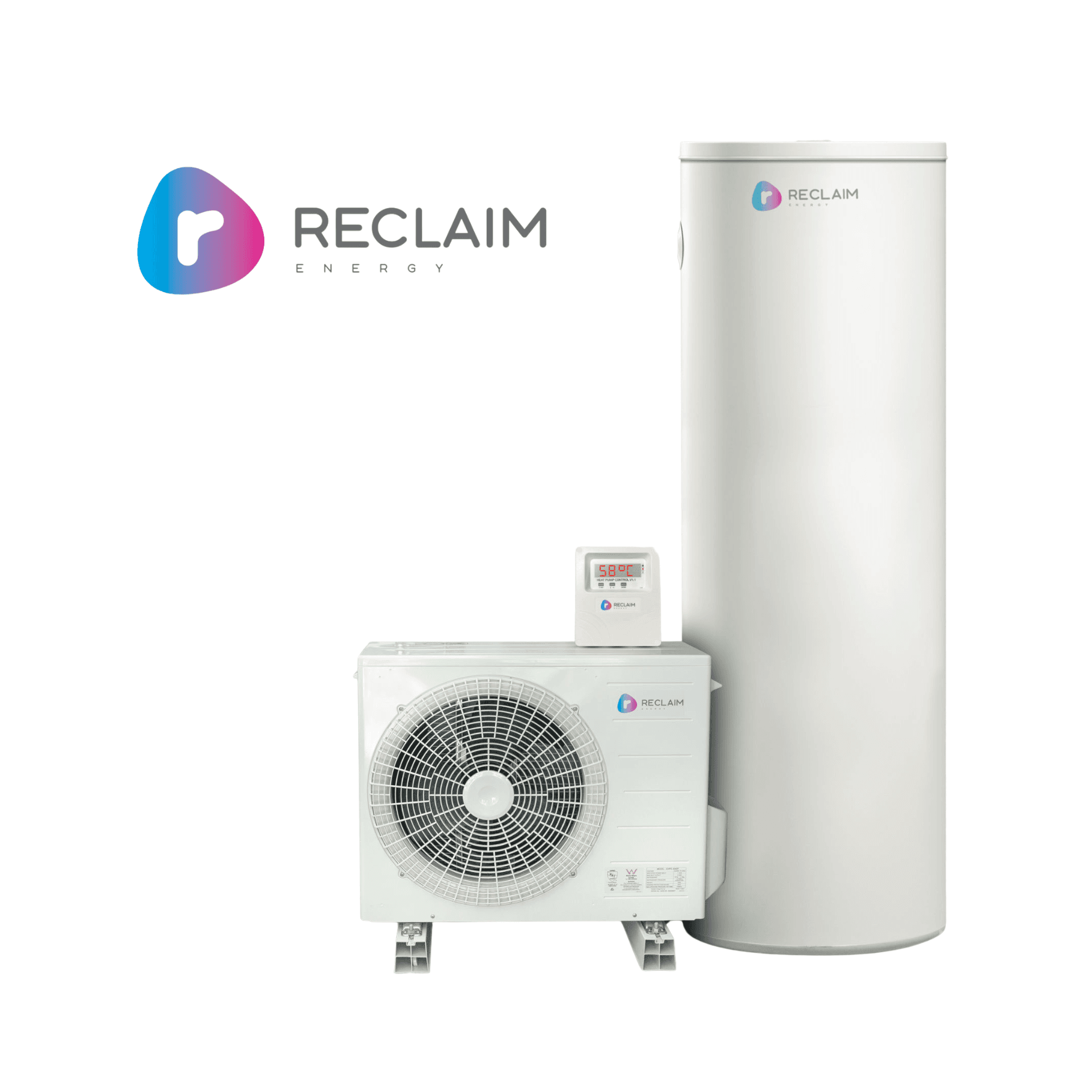

The Reclaim Energy CO2 Heat Pump Hot Water System consists of a heat pump (compressor) and a storage tank (stainless steel or glass lined). The system’s heat exchange collects heat from the air surrounding the unit to use as energy to heat up a pressurised refrigerant, which is ozone friendly CO2. The unit can supply in excess of five units of heat energy from ambient air for every unit of electricity it consumes, meaning the cost of energy used to produce hot water is minimised. The CO2 Heat Pump has excellent cold weather performance characteristics, meaning there is no need for a boosting element to supplement heating for the unit.

Reclaim Heat Pump

Combining the system with your PV system (Solar Power System) only enhances the reduction in energy consumption and costs. The Reclaim Energy CO2 Heat Pump with an average of 3 kWh electric input for a 315 L hot water delivery (i.e. as opposed to 15 kWh electric input requirement of electric element tanks for 315 L hot water delivery) is like having a virtual battery for your home. It is designed to consume excess PV during peak sun hours to maximise savings and take advantage of the energy already created rather than exporting it back to the grid.

A Smart Controller puts the control in your hands and ensures that the Reclaim Energy CO2 Heat Pump Hot Water System provides a highly efficient, low operating cost hot water solution. The controller allows the customisation of how and when the hot water system works.

  • 5 pre-set options including PV operational window (i.e. 10 am-4 pm) together with an option 5 with two operational windows allows you to minimise and match your hot water production with your consumption and minimising your hot water costs
  • One-shot boost providing all the hot water needed on demand
  • Off peak management ensures running costs are kept to a minimum
  • Continuous hot water with a set and forget feature

Optional Wi-Fi Controller upgrade brings you 8 pre-set options including:

  • Holiday Mode (Trial) to minimise your energy usage and costs
  • Wi-Fi control of your heat pump using Solar Maximiser Tool (COMING SOON!)
Reclaim (3).png
